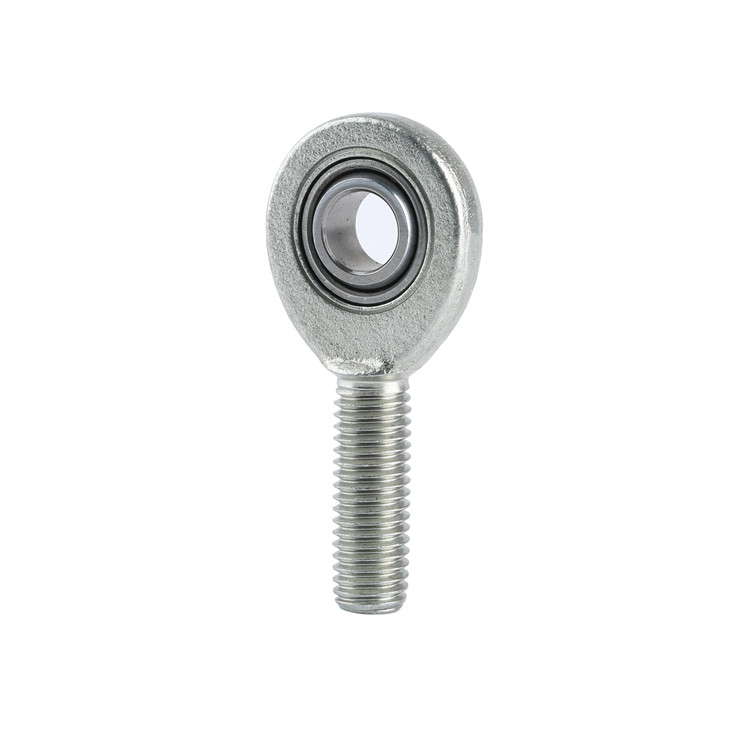

| Menge: | |
|---|---|
|
|
| Teil-Nr. | Abmessungen mm. | Laden von KN. | Gewicht | ||||||||||||
| d | d3. | B | C1. | L1. | d2. | L7. | h | L2. | Dk | R1s. | a | dyna | stat. | kg | |
| 6g. | Mindest | Mindest | ≈ | C | C0. | ||||||||||
| Sa6e * | 6 | M6x1.0. | 6 | 4.4 | 18 | 21 | 12 | 36 | 47 | 10 | 0.3 | 13 | 3.4 | 8.15 | 0.017 |
| Sa8e * | 8 | M8x1.25. | 8 | 6 | 22 | 24 | 14 | 42 | 54 | 13 | 0.3 | 15 | 5.5 | 12.9 | 0.029 |
| SA10E * | 10 | M10x1.5. | 9 | 7 | 26 | 29 | 15 | 48 | 63 | 16 | 0.3 | 12 | 8.15 | 17.6 | 0.051 |
| SA12E * | 12 | M12x1.75. | 10 | 8 | 28 | 34 | 18 | 54 | 71 | 18 | 0.3 | 11 | 10.8 | 24.5 | 0.086 |
| Sa15es. | 15 | M14x2.0. | 12 | 10 | 34 | 40 | 20 | 63 | 83 | 22 | 0.3 | 8 | 17 | 36 | 0.14 |
| SA17ES. | 17 | M16X2.0. | 14 | 11 | 36 | 46 | 23 | 69 | 92 | 25 | 0.3 | 10 | 21.2 | 45 | 0.19 |
| SA20ES. | 20 | M20x1.5. | 16 | 13 | 43 | 53 | 27 | 78 | 105 | 29 | 0.6 | 9 | 30 | 60 | 0.31 |
| Sa25es. | 25 | M24x2.0. | 20 | 17 | 53 | 64 | 32 | 94 | 126 | 36 | 0.6 | 7 | 48 | 83 | 0.56 |
| SA30ES. | 30 | M30x2.0. | 22 | 19 | 65 | 73 | 37 | 110 | 147 | 41 | 0.6 | 6 | 62 | 110 | 0.89 |
| SA35ES. | 35 | M36x3.0. | 25 | 21 | 82 | 82 | 42 | 140 | 181 | 47 | 0.6 | 6 | 80 | 146 | 1.4 |
| SA90ES. | 40 | M39x3.0. | 28 | 23 | 86 | 92 | 48 | 150 | 196 | 53 | 0.6 | 7 | 100 | 180 | 1.8 |
| SA40-1EES. | 40 | M42x3.0. | 28 | 23 | 86 | 92 | 48 | 150 | 196 | 53 | 0.6 | 7 | 100 | 180 | 1.85 |
| SA45ES. | 45 | M42x3.0. | 32 | 27 | 94 | 102 | 52 | 163 | 214 | 60 | 0.6 | 7 | 127 | 240 | 2.6 |
| SA45-1EES. | 45 | M45x3.0. | 32 | 27 | 94 | 102 | 52 | 163 | 214 | 60 | 0.6 | 7 | 127 | 240 | 2.66 |
| Sa50es | 50 | M45x3.0. | 35 | 30 | 107 | 112 | 60 | 185 | 241 | 66 | 0.6 | 6 | 156 | 290 | 3.4 |
| SA50-1EES. | 50 | M52x3.0. | 35 | 30 | 107 | 112 | 60 | 185 | 241 | 66 | 0.6 | 6 | 156 | 290 | 3.5 |
| Sa60es. | 60 | M52x3.0. | 44 | 38 | 115 | 135 | 72 | 210 | 278 | 80 | 1 | 6 | 245 | 450 | 5.9 |
| SA60-1ES. | 60 | M60x4.0. | 44 | 38 | 115 | 135 | 72 | 210 | 278 | 80 | 1 | 6 | 245 | 450 | 6.02 |
| SA70ES. | 70 | M56x4.0. | 49 | 42 | 125 | 160 | 87 | 235 | 315 | 92 | 1 | 6 | 315 | 610 | 8.2 |
| Sa70-1es. | 70 | M72X4.0. | 49 | 42 | 125 | 160 | 87 | 235 | 315 | 92 | 1 | 6 | 315 | 610 | 8.38 |
| Sa80es. | 80 | M64X4.0. | 55 | 47 | 140 | 180 | 100 | 270 | 360 | 105 | 1 | 6 | 400 | 750 | 12 |
| SA80-1EES. | 80 | M80X4.0. | 55 | 47 | 140 | 180 | 100 | 270 | 360 | 105 | 1 | 6 | 400 | 750 | 12.2 |
-Rod-Körper mit rechts oder linker Innengewinde.
-Suffe des Stabkörpers verzinkt, Gehäuse von SA..es mit einem Schmierloch oder Schmiernippel.
-Für-Links-Thread, bitte surffix \"l \", E.g.Sal30 ES.
-Füre D ≥ 15, SA..ES 2Rs auch erhältlich, E.G.SA30ES 2Rs.
Loch- oder Fettnippel ist nicht verfügbar für die mit Mark gekennzeichneten Größen \"* \" verfügbar.
|
|
