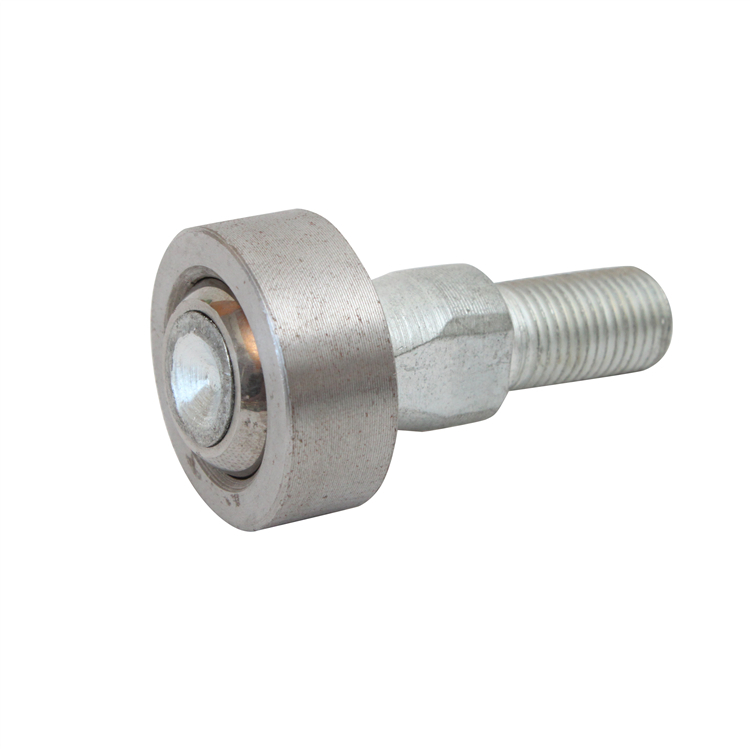

Zinklegierungskugelgelenke
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
| Menge: | |
|---|---|
|
|

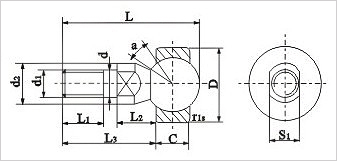

| Teil-Nr. | d | d1. | d2. | L1. | L2. | L3. | L | S1. | C | D | R1s. | a | Laden von KN. | Gewicht (kg |
| 6g. | Mindest | Mindest | ≈ | |||||||||||
| SQD5. | 5 | M5x0.8. | 9 | 8 | 8.0 | 19.0 | 27.5 | 7 | 6.00 | 16 | 0.3 | 25 | 2.0 | 0.014 |
| SQD6. | 6 | M6x1.0. | 10 | 11 | 8.8 | 23.5 | 33.5 | 8 | 6.75 | 18 | 0.3 | 25 | 3.2 | 0.021 |
| SQD8. | 8 | M8x1.25. | 12 | 12 | 11.6 | 28.6 | 41.0 | 10 | 9.00 | 22 | 0.3 | 25 | 5.7 | 0.042 |
| SQD10. | 10 | M10x1.25. | 14 | 15 | 14.2 | 34.2 | 49.0 | 11 | 10.50 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| SQD10-1. | 10 | M10x1.5. | 14 | 21 | 14.2 | 40.2 | 55.0 | 11 | 10.50 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| SQD12. | 12 | M12x1.25. | 17 | 17 | 15.1 | 38.1 | 55.1 | 15 | 12.00 | 30 | 0.5 | 25 | 14.0 | 0.108 |
| SQD12-1. | 12 | M12x1.75. | 17 | 24 | 15.1 | 45.1 | 62.1 | 15 | 12.00 | 30 | 0.5 | 25 | 14.0 | 0.108 |
| SQD14. | 14 | M14x1.5. | 19 | 22 | 16.8 | 51.3 | 70.7 | 17 | 13.50 | 34 | 0.5 | 20 | 19.0 | 0.167 |
| SQD14-1. | 14 | M14x2.0. | 19 | 28 | 16.8 | 57.3 | 76.7 | 17 | 13.50 | 34 | 0.5 | 20 | 19.0 | 0.167 |
| SQD16. | 16 | M16X1.5. | 22 | 23 | 18.0 | 54.5 | 76.3 | 19 | 15.00 | 38 | 0.5 | 20 | 26.0 | 0.238 |
| SQD16-1. | 16 | M16X2.0. | 22 | 29 | 18.0 | 60.5 | 82.3 | 19 | 15.00 | 38 | 0.5 | 20 | 26.0 | 0.238 |
Material
Gehäuse:Hochfeste Zinklegierung
Alternative:Stahlgehäuse.
Ball:GCR15, entspricht SAE52100
Zucht:Legierungsstahl 40cr, schwarz oxidiert
Alle Abmessungen sind in mm
|
|
| Teil-Nr. | d | d1. | d2. | L1. | L2. | L3. | L | S1. | C | D | R1s. | a | Laden von KN. | Gewicht (kg |
| 6g. | Mindest | Mindest | ≈ | |||||||||||
| SQD5. | 5 | M5x0.8. | 9 | 8 | 8.0 | 19.0 | 27.5 | 7 | 6.00 | 16 | 0.3 | 25 | 2.0 | 0.014 |
| SQD6. | 6 | M6x1.0. | 10 | 11 | 8.8 | 23.5 | 33.5 | 8 | 6.75 | 18 | 0.3 | 25 | 3.2 | 0.021 |
| SQD8. | 8 | M8x1.25. | 12 | 12 | 11.6 | 28.6 | 41.0 | 10 | 9.00 | 22 | 0.3 | 25 | 5.7 | 0.042 |
| SQD10. | 10 | M10x1.25. | 14 | 15 | 14.2 | 34.2 | 49.0 | 11 | 10.50 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| SQD10-1. | 10 | M10x1.5. | 14 | 21 | 14.2 | 40.2 | 55.0 | 11 | 10.50 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| SQD12. | 12 | M12x1.25. | 17 | 17 | 15.1 | 38.1 | 55.1 | 15 | 12.00 | 30 | 0.5 | 25 | 14.0 | 0.108 |
| SQD12-1. | 12 | M12x1.75. | 17 | 24 | 15.1 | 45.1 | 62.1 | 15 | 12.00 | 30 | 0.5 | 25 | 14.0 | 0.108 |
| SQD14. | 14 | M14x1.5. | 19 | 22 | 16.8 | 51.3 | 70.7 | 17 | 13.50 | 34 | 0.5 | 20 | 19.0 | 0.167 |
| SQD14-1. | 14 | M14x2.0. | 19 | 28 | 16.8 | 57.3 | 76.7 | 17 | 13.50 | 34 | 0.5 | 20 | 19.0 | 0.167 |
| SQD16. | 16 | M16X1.5. | 22 | 23 | 18.0 | 54.5 | 76.3 | 19 | 15.00 | 38 | 0.5 | 20 | 26.0 | 0.238 |
| SQD16-1. | 16 | M16X2.0. | 22 | 29 | 18.0 | 60.5 | 82.3 | 19 | 15.00 | 38 | 0.5 | 20 | 26.0 | 0.238 |
Material
Gehäuse:Hochfeste Zinklegierung
Alternative:Stahlgehäuse.
Ball:GCR15, entspricht SAE52100
Zucht:Legierungsstahl 40cr, schwarz oxidiert
Alle Abmessungen sind in mm
