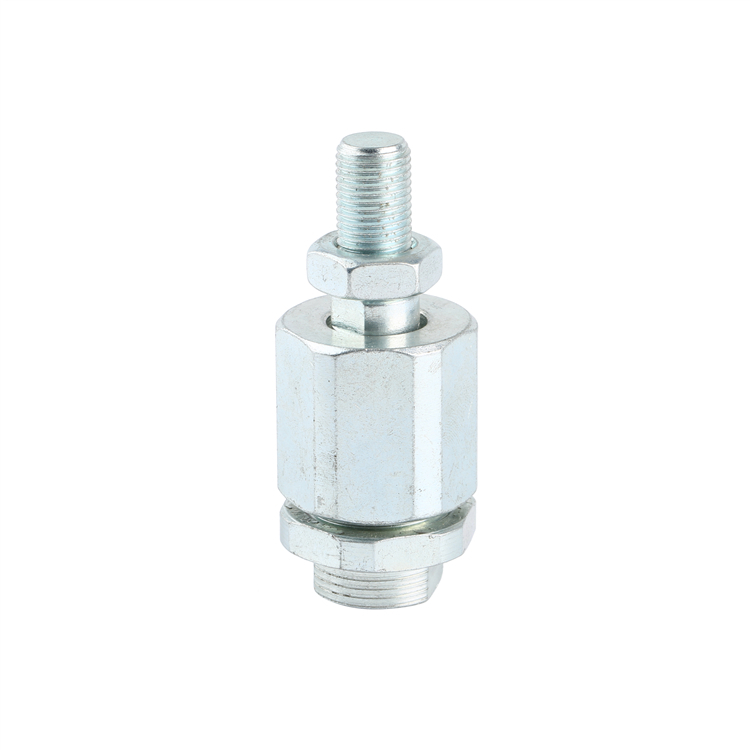

SAE Standard Kugelgelenke
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
| Menge: | |
|---|---|
|
|

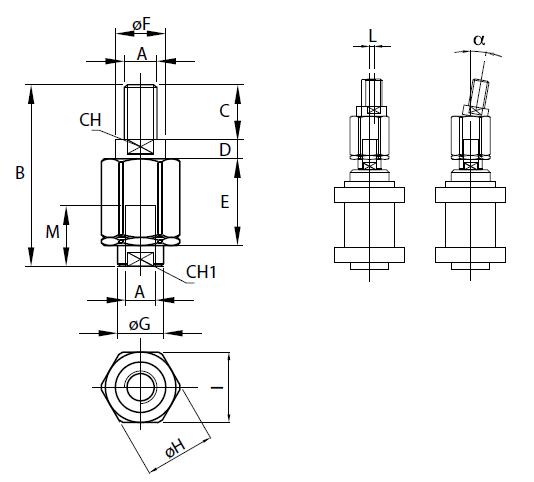

| Referenznummer. | Zylinder | A | B | C | D | E | F | G | H | I | L | M | CH | α | CH1. | Gewicht (kg) |
| SAB 6. | 12/16. | M6x1,00. | 35 | 10 | 3,5. | 17,5. | 6,0. | 8,5. | 15 | 13 | 1 | 13 | 5 | 10 | 7 | 0,025. |
| SAB 8. | 25/30. | M8x1,25. | 57 | 20 | 4,0. | 26 | 8,0. | 12,5. | 19 | 17 | 2 | 18 | 7 | 10 | 11 | 0,06. |
| SAB10X1,25. | 32 | M10x1,25. | 71 | 20 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22. |
| SAB10. | 32 | M10x1,50. | 71 | 20 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22. |
| SAB12x1,25. | 40 | M12x1,25. | 75 | 24 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23. |
| Sab12. | 40 | M12x1,75. | 75 | 24 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23. |
| SAB16X1,5. | 50/63. | M16X1,50. | 103 | 32 | 8,0. | 54,0. | 22,0. | 32,0. | 45 | 41 | 2 | 32 | 20 | 10 | 27 | 0,66. |
| SAB20X1,5. | 80/100. | M20x1,50. | 119 | 40 | 8,0. | 54,0. | 22,0. | 32,0. | 45 | 41 | 2 | 39 | 20 | 10 | 27 | 0,7. |
| SAB27X2. | 125 | M27X2,00. | 147 | 54 | 10,0. | 60,0. | 32,0. | 57,0. | 70 | 65 | 2 | 46 | 24 | 8 | 54 | 1,00. |
| SAB36X2. | 160/200. | M36x2,00. | 190 | 72 | 15,0. | 77,0. | 39,0. | 57,0. | 75 | 70 | 2 | 68 | 32 | 8 | 54 | 3,12. |
|
|
| Referenznummer. | Zylinder | A | B | C | D | E | F | G | H | I | L | M | CH | α | CH1. | Gewicht (kg) |
| SAB 6. | 12/16. | M6x1,00. | 35 | 10 | 3,5. | 17,5. | 6,0. | 8,5. | 15 | 13 | 1 | 13 | 5 | 10 | 7 | 0,025. |
| SAB 8. | 25/30. | M8x1,25. | 57 | 20 | 4,0. | 26 | 8,0. | 12,5. | 19 | 17 | 2 | 18 | 7 | 10 | 11 | 0,06. |
| SAB10X1,25. | 32 | M10x1,25. | 71 | 20 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22. |
| SAB10. | 32 | M10x1,50. | 71 | 20 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,22. |
| SAB12x1,25. | 40 | M12x1,25. | 75 | 24 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23. |
| Sab12. | 40 | M12x1,75. | 75 | 24 | 5,0. | 35,0. | 14,0. | 22,0. | 32 | 30 | 2 | 23 | 12 | 10 | 19 | 0,23. |
| SAB16X1,5. | 50/63. | M16X1,50. | 103 | 32 | 8,0. | 54,0. | 22,0. | 32,0. | 45 | 41 | 2 | 32 | 20 | 10 | 27 | 0,66. |
| SAB20X1,5. | 80/100. | M20x1,50. | 119 | 40 | 8,0. | 54,0. | 22,0. | 32,0. | 45 | 41 | 2 | 39 | 20 | 10 | 27 | 0,7. |
| SAB27X2. | 125 | M27X2,00. | 147 | 54 | 10,0. | 60,0. | 32,0. | 57,0. | 70 | 65 | 2 | 46 | 24 | 8 | 54 | 1,00. |
| SAB36X2. | 160/200. | M36x2,00. | 190 | 72 | 15,0. | 77,0. | 39,0. | 57,0. | 75 | 70 | 2 | 68 | 32 | 8 | 54 | 3,12. |
