| Menge: | |
|---|---|
|

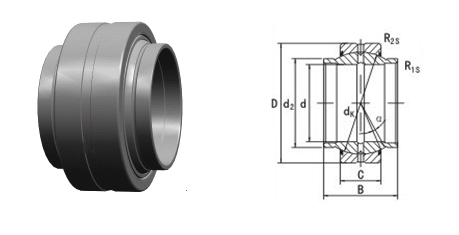

| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht | |||||||||
| d | d2. | D | B | C | Dk | R1s. | R2s. | α | Dyna | Stat. | kg | |
| Mindest | Mindest | ≈ | C | Kugel | ||||||||
| Geem17es-2rs. | 17 | 21 | 30 | 21 | 10 | 25 | 0.2 | 0.3 | 3 | 21.2 | 106 | 0.04 |
| Geem20es-2rs. | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | 0.069 |
| GEEM25ES-2RS. | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | 0.12 |
| Geem30es-Rs. | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | 0.15 |
| Geem35es-2rs. | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | 0.26 |
| Geem40es-2rs. | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | 0.32 |
| Geem45es-2rs. | 45 | 52 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| Geem50es-2rs. | 50 | 57 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | 0.55 |
| Geem60es-2rs. | 60 | 68 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| Geem70ES-2Rs. | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| Geem80es-2rs. | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | 2.5 |
-Outer Ring mit Schmiernut und Löcher.
-Inderer Ring mit zylindrischen Erweiterungen an jeder Seite.
-Mit zwei Dichtungen auf beiden Seiten.
|
| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht | |||||||||
| d | d2. | D | B | C | Dk | R1s. | R2s. | α | Dyna | Stat. | kg | |
| Mindest | Mindest | ≈ | C | Kugel | ||||||||
| Geem17es-2rs. | 17 | 21 | 30 | 21 | 10 | 25 | 0.2 | 0.3 | 3 | 21.2 | 106 | 0.04 |
| Geem20es-2rs. | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | 0.069 |
| GEEM25ES-2RS. | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | 0.12 |
| Geem30es-Rs. | 30 | 34 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | 0.15 |
| Geem35es-2rs. | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | 0.26 |
| Geem40es-2rs. | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | 0.32 |
| Geem45es-2rs. | 45 | 52 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| Geem50es-2rs. | 50 | 57 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | 0.55 |
| Geem60es-2rs. | 60 | 68 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| Geem70ES-2Rs. | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| Geem80es-2rs. | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | 2.5 |
-Outer Ring mit Schmiernut und Löcher.
-Inderer Ring mit zylindrischen Erweiterungen an jeder Seite.
-Mit zwei Dichtungen auf beiden Seiten.
