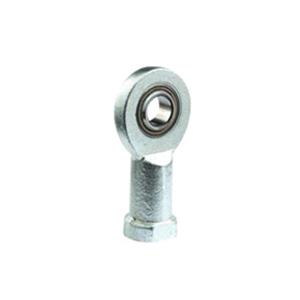

Metrische Stab endet.
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
| Menge: | |
|---|---|
|
|
| Teil-Nr. | Abmessungen mm. | Lastbewertungen / kN | Gewicht | ||||||||||||||
| d | d3. | B | C1. | L3. | W | d2. | H1. | L4. | L5. | d4. | d5. | Dk | a | dyna | stat. | kg | |
| 6h | Mindest | ≈ | C | C0. | |||||||||||||
| Gir6uk. | 6 | M6x1.0. | 6 | 4.4 | 11 | 11 | 21 | 30 | 40.5 | 5 | 10 | 13 | 10 | 13 | 3.6 | 8.15 | 0.021 |
| Gir8uk. | 8 | M8x1.25. | 8 | 6 | 15 | 14 | 24 | 36 | 48 | 5 | 12.5 | 16 | 13 | 15 | 5.85 | 12.9 | 0.039 |
| Gir10uk. | 10 | M10x1.5. | 9 | 7 | 20 | 17 | 29 | 43 | 57.5 | 6.5 | 15 | 19 | 16 | 12 | 8.65 | 17.6 | 0.061 |
| Gir12uk. | 12 | M12x1.75. | 10 | 8 | 23 | 19 | 34 | 50 | 67 | 6.5 | 17.5 | 22 | 18 | 11 | 11.4 | 24.5 | 0.096 |
| Gir15uk. | 15 | M14x2.0. | 12 | 10 | 30 | 22 | 40 | 61 | 81 | 8 | 21 | 26 | 22 | 8 | 17.6 | 36 | 0.18 |
| Gir17uk (2rs) | 17 | M16X2.0. | 14 | 11 | 34 | 27 | 46 | 67 | 90 | 10 | 24 | 30 | 25 | 10 | 22.4 | 45 | 0.22 |
| Gir20uk (2Rs) | 20 | M20x1.5. | 16 | 13 | 40 | 32 | 53 | 77 | 103.5 | 10 | 27.5 | 35 | 29 | 9 | 31.5 | 60 | 0.35 |
| Gir25uk (2Rs) | 25 | M24x2.0. | 20 | 17 | 48 | 36 | 64 | 94 | 126 | 12 | 33.5 | 42 | 35.5 | 7 | 51 | 83 | 0.64 |
| Gir30uk (2Rs) | 30 | M30x2.0. | 22 | 19 | 56 | 41 | 73 | 110 | 146.5 | 15 | 40 | 50 | 40.7 | 6 | 66.5 | 110 | 0.93 |
| Gir35uk2rs. | 35 | M36x3.0. | 25 | 21 | 60 | 50 | 82 | 125 | 166 | 15 | 47 | 58 | 47 | 6 | 112 | 146 | 1.3 |
| Gir40uk2rs. | 40 | M39x3.0. | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 140 | 180 | 2 |
| Gir40-1UK2RS. | 40 | M42x3.0. | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 140 | 180 | 1.96 |
| Gir45uk2rs. | 45 | M42x3.0. | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 180 | 240 | 2.5 |
| Gir45-1UK2RS. | 45 | M45x3.0. | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 180 | 240 | 2.44 |
| Gir50uk2rs. | 50 | M45x3.0. | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 220 | 290 | 3.5 |
| Gir50-1UK2RS. | 50 | M52x3.0. | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 220 | 290 | 3.4 |
| Gir60uk2rs. | 60 | M52x3.0. | 44 | 38 | 70 | 75 | 135 | 175 | 242.5 | 20 | 70 | 88 | 80 | 6 | 345 | 450 | 5.5 |
| Gir60-1uk2rs. | 60 | M60x4.0. | 44 | 38 | 70 | 75 | 135 | 175 | 242.5 | 20 | 70 | 88 | 80 | 6 | 345 | 450 | 5.38 |
| Gir70uk2rs. | 70 | M56x4.0. | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 440 | 610 | 8.6 |
| Gir70-1UK2RS. | 70 | M72X4.0. | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 440 | 610 | 8.42 |
| Gir80uk2rs. | 80 | M64X4.0. | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 570 | 750 | 12 |
| Gir80-1uk2rs. | 80 | M80X4.0. | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 570 | 750 | 11.8 |
- Körper, Kohlenstoffstahl,
- sphärische Gleitlager einsetzen Bitte beziehen Sie sich auf GE..C oder GE..C 2Rs
- Oberflächenschutz: verzinkt.
- Merkmale der Struktur: Das Gerät besteht aus einem Körper und einem kugelförmigen Gleitlager ge..c oder ge..c 2rs .mit weiblicher Faden
- Für linker Thread, fügen Sie bitte Surffix \"l \", E.G.Girl10 UK hinzu.
|
|
| Teil-Nr. | Abmessungen mm. | Lastbewertungen / kN | Gewicht | ||||||||||||||
| d | d3. | B | C1. | L3. | W | d2. | H1. | L4. | L5. | d4. | d5. | Dk | a | dyna | stat. | kg | |
| 6h | Mindest | ≈ | C | C0. | |||||||||||||
| Gir6uk. | 6 | M6x1.0. | 6 | 4.4 | 11 | 11 | 21 | 30 | 40.5 | 5 | 10 | 13 | 10 | 13 | 3.6 | 8.15 | 0.021 |
| Gir8uk. | 8 | M8x1.25. | 8 | 6 | 15 | 14 | 24 | 36 | 48 | 5 | 12.5 | 16 | 13 | 15 | 5.85 | 12.9 | 0.039 |
| Gir10uk. | 10 | M10x1.5. | 9 | 7 | 20 | 17 | 29 | 43 | 57.5 | 6.5 | 15 | 19 | 16 | 12 | 8.65 | 17.6 | 0.061 |
| Gir12uk. | 12 | M12x1.75. | 10 | 8 | 23 | 19 | 34 | 50 | 67 | 6.5 | 17.5 | 22 | 18 | 11 | 11.4 | 24.5 | 0.096 |
| Gir15uk. | 15 | M14x2.0. | 12 | 10 | 30 | 22 | 40 | 61 | 81 | 8 | 21 | 26 | 22 | 8 | 17.6 | 36 | 0.18 |
| Gir17uk (2rs) | 17 | M16X2.0. | 14 | 11 | 34 | 27 | 46 | 67 | 90 | 10 | 24 | 30 | 25 | 10 | 22.4 | 45 | 0.22 |
| Gir20uk (2Rs) | 20 | M20x1.5. | 16 | 13 | 40 | 32 | 53 | 77 | 103.5 | 10 | 27.5 | 35 | 29 | 9 | 31.5 | 60 | 0.35 |
| Gir25uk (2Rs) | 25 | M24x2.0. | 20 | 17 | 48 | 36 | 64 | 94 | 126 | 12 | 33.5 | 42 | 35.5 | 7 | 51 | 83 | 0.64 |
| Gir30uk (2Rs) | 30 | M30x2.0. | 22 | 19 | 56 | 41 | 73 | 110 | 146.5 | 15 | 40 | 50 | 40.7 | 6 | 66.5 | 110 | 0.93 |
| Gir35uk2rs. | 35 | M36x3.0. | 25 | 21 | 60 | 50 | 82 | 125 | 166 | 15 | 47 | 58 | 47 | 6 | 112 | 146 | 1.3 |
| Gir40uk2rs. | 40 | M39x3.0. | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 140 | 180 | 2 |
| Gir40-1UK2RS. | 40 | M42x3.0. | 28 | 23 | 65 | 55 | 92 | 142 | 188 | 18 | 52 | 65 | 53 | 7 | 140 | 180 | 1.96 |
| Gir45uk2rs. | 45 | M42x3.0. | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 180 | 240 | 2.5 |
| Gir45-1UK2RS. | 45 | M45x3.0. | 32 | 27 | 65 | 60 | 102 | 145 | 196 | 20 | 58 | 70 | 60 | 7 | 180 | 240 | 2.44 |
| Gir50uk2rs. | 50 | M45x3.0. | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 220 | 290 | 3.5 |
| Gir50-1UK2RS. | 50 | M52x3.0. | 35 | 30 | 68 | 65 | 112 | 160 | 216 | 20 | 62 | 75 | 66 | 6 | 220 | 290 | 3.4 |
| Gir60uk2rs. | 60 | M52x3.0. | 44 | 38 | 70 | 75 | 135 | 175 | 242.5 | 20 | 70 | 88 | 80 | 6 | 345 | 450 | 5.5 |
| Gir60-1uk2rs. | 60 | M60x4.0. | 44 | 38 | 70 | 75 | 135 | 175 | 242.5 | 20 | 70 | 88 | 80 | 6 | 345 | 450 | 5.38 |
| Gir70uk2rs. | 70 | M56x4.0. | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 440 | 610 | 8.6 |
| Gir70-1UK2RS. | 70 | M72X4.0. | 49 | 42 | 80 | 85 | 160 | 200 | 280 | 20 | 80 | 98 | 92 | 6 | 440 | 610 | 8.42 |
| Gir80uk2rs. | 80 | M64X4.0. | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 570 | 750 | 12 |
| Gir80-1uk2rs. | 80 | M80X4.0. | 55 | 47 | 85 | 100 | 180 | 230 | 320 | 25 | 95 | 110 | 105 | 6 | 570 | 750 | 11.8 |
- Körper, Kohlenstoffstahl,
- sphärische Gleitlager einsetzen Bitte beziehen Sie sich auf GE..C oder GE..C 2Rs
- Oberflächenschutz: verzinkt.
- Merkmale der Struktur: Das Gerät besteht aus einem Körper und einem kugelförmigen Gleitlager ge..c oder ge..c 2rs .mit weiblicher Faden
- Für linker Thread, fügen Sie bitte Surffix \"l \", E.G.Girl10 UK hinzu.
