Hydraulikstangen enden
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
Verfügbarkeitsstatus: | |
---|---|
Menge: | |

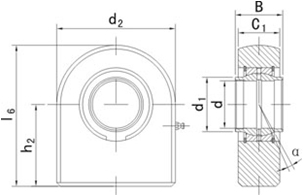

Teil-Nr. | Abmessungen mm. | Lädt die Bewertungen KN. | Gewicht (kg | ||||||||
d | B | C1. | d2. | L6. | H2. | d1. | a ≈. | Dyn C. | Stat C0. | ||
GF16LO. | 16 | 16 | 17.5 | 48 | 59 | 35 | 20 | 4 | 17 | 40 | 0.30 |
GF20LO. | 20 | 20 | 19 | 50 | 63 | 38 | 25 | 4 | 30 | 74 | 0.36 |
GF25LO. | 25 | 25 | 23 | 55 | 72.5 | 45 | 30.5 | 4 | 48 | 95 | 0.54 |
GF32LO. | 32 | 32 | 27 | 70 | 100 | 65 | 38 | 4 | 62.5 | 168 | 1.12 |
GF40LO. | 40 | 40 | 35 | 100 | 119 | 69 | 46 | 4 | 100 | 268 | 2.50 |
GF50LO. | 50 | 50 | 40 | 123 | 149.5 | 88 | 57 | 4 | 156 | 362 | 4.60 |
GF63LO. | 63 | 63 | 50 | 145 | 179.5 | 107 | 71.5 | 4 | 248 | 570 | 9.30 |
GF70LO. | 70 | 70 | 55 | 164 | 197 | 115 | 79 | 4 | 315 | 800 | 11.25 |
Gf80lo. | 80 | 80 | 60 | 180 | 231 | 141 | 91 | 4 | 400 | 874 | 15.75 |
GF90LO. | 90 | 90 | 65 | 226 | 263 | 150 | 99 | 4 | 490 | 1045 | 24.00 |
GF100LO. | 100 | 100 | 70 | 250 | 295 | 170 | 113 | 4 | 610 | 1330 | 33.95 |
GF100LO. | 110 | 110 | 80 | 295 | 332.5 | 185 | 124 | 4 | 655 | 1490 | 49.00 |

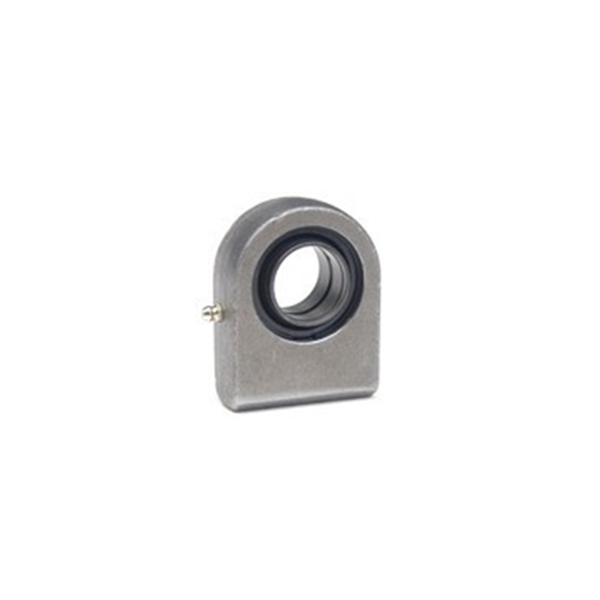

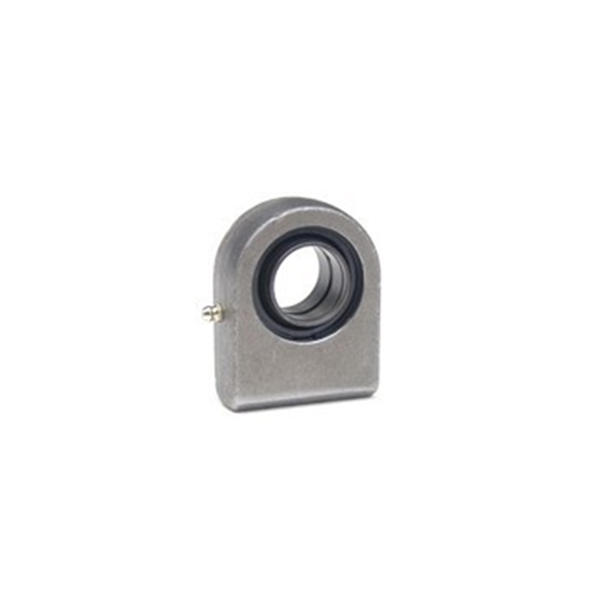

-Rod-Endgehäuse mit rechts oder linker Innengewinde.
-Es besteht aus einem radialen kugelförmigen Gleitlager GE..LO und RAD-Endgehäuse.
-Rod-Endgehäuse mit einem Schmierloch oder Schmiernippel.
-Eliertes Design auch erhältlich, z.B.gf 70 Lo 2Rs.
Teil-Nr. | Abmessungen mm. | Lädt die Bewertungen KN. | Gewicht (kg | ||||||||
d | B | C1. | d2. | L6. | H2. | d1. | a ≈. | Dyn C. | Stat C0. | ||
GF16LO. | 16 | 16 | 17.5 | 48 | 59 | 35 | 20 | 4 | 17 | 40 | 0.30 |
GF20LO. | 20 | 20 | 19 | 50 | 63 | 38 | 25 | 4 | 30 | 74 | 0.36 |
GF25LO. | 25 | 25 | 23 | 55 | 72.5 | 45 | 30.5 | 4 | 48 | 95 | 0.54 |
GF32LO. | 32 | 32 | 27 | 70 | 100 | 65 | 38 | 4 | 62.5 | 168 | 1.12 |
GF40LO. | 40 | 40 | 35 | 100 | 119 | 69 | 46 | 4 | 100 | 268 | 2.50 |
GF50LO. | 50 | 50 | 40 | 123 | 149.5 | 88 | 57 | 4 | 156 | 362 | 4.60 |
GF63LO. | 63 | 63 | 50 | 145 | 179.5 | 107 | 71.5 | 4 | 248 | 570 | 9.30 |
GF70LO. | 70 | 70 | 55 | 164 | 197 | 115 | 79 | 4 | 315 | 800 | 11.25 |
Gf80lo. | 80 | 80 | 60 | 180 | 231 | 141 | 91 | 4 | 400 | 874 | 15.75 |
GF90LO. | 90 | 90 | 65 | 226 | 263 | 150 | 99 | 4 | 490 | 1045 | 24.00 |
GF100LO. | 100 | 100 | 70 | 250 | 295 | 170 | 113 | 4 | 610 | 1330 | 33.95 |
GF100LO. | 110 | 110 | 80 | 295 | 332.5 | 185 | 124 | 4 | 655 | 1490 | 49.00 |
-Rod-Endgehäuse mit rechts oder linker Innengewinde.
-Es besteht aus einem radialen kugelförmigen Gleitlager GE..LO und RAD-Endgehäuse.
-Rod-Endgehäuse mit einem Schmierloch oder Schmiernippel.
-Eliertes Design auch erhältlich, z.B.gf 70 Lo 2Rs.
