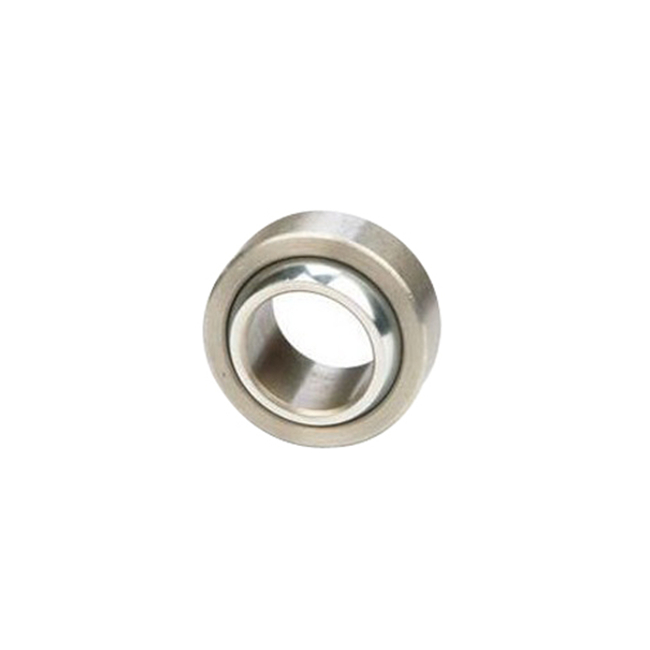

Sphärische Gleitlager
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
| Menge: | |
|---|---|
|
|

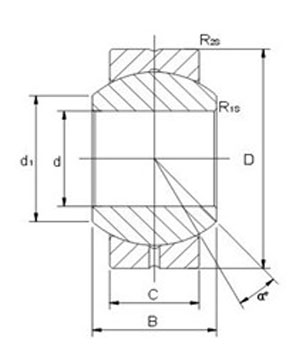

| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht (kg | ||||||||
| d | D | B | C | d1. | R1s. | R2s. | α | dyna | stat. | ||
| Mindest | Mindest | Mindest | ≈ | C | C0. | ||||||
| Gebj5s. | 5 | 13 | 8 | 6 | 7.7 | 0.3 | 0.3 | 13 | 3.2 | 9 | 0.007 |
| Gebj6s. | 6 | 16 | 9 | 6.8 | 9 | 0.3 | 0.3 | 13 | 4.1 | 12 | 0.01 |
| Gebj8s. | 8 | 19 | 12 | 9 | 10 | 0.3 | 0.3 | 13 | 6.5 | 20 | 0.016 |
| Gebj10s. | 10 | 22 | 14 | 11 | 13 | 0.3 | 0.6 | 13 | 9.6 | 28 | 0.031 |
| Gebj12s. | 12 | 26 | 16 | 12 | 15 | 0.3 | 0.6 | 13 | 12 | 37 | 0.055 |
| Gebj14s. | 14 | 28 | 19 | 14 | 17 | 0.3 | 0.6 | 15 | 16 | 49 | 0.078 |
| Gebj16s. | 16 | 32 | 21 | 15 | 19 | 0.3 | 0.6 | 15 | 20 | 61 | 0.095 |
| Gebj18s. | 18 | 35 | 23 | 17 | 22 | 0.3 | 0.6 | 15 | 25 | 74 | 0.14 |
| Gebj20s. | 20 | 40 | 25 | 18 | 24 | 0.3 | 0.6 | 15 | 30 | 89 | 0.18 |
| Gebj22s. | 22 | 42 | 28 | 20 | 26 | 0.3 | 0.6 | 15 | 36 | 108 | 0.21 |
| Gebj25s. | 25 | 47 | 31 | 22 | 30 | 0.6 | 0.6 | 15 | 45 | 130 | 0.35 |
| Gebj30s. | 30 | 55 | 37 | 25 | 35 | 0.6 | 0.6 | 15 | 61 | 178 | 0.56 |
-Outerring um den Innenring drückt.
-Mit Schmiernut und Löcher im Außenring.
|
|
| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht (kg | ||||||||
| d | D | B | C | d1. | R1s. | R2s. | α | dyna | stat. | ||
| Mindest | Mindest | Mindest | ≈ | C | C0. | ||||||
| Gebj5s. | 5 | 13 | 8 | 6 | 7.7 | 0.3 | 0.3 | 13 | 3.2 | 9 | 0.007 |
| Gebj6s. | 6 | 16 | 9 | 6.8 | 9 | 0.3 | 0.3 | 13 | 4.1 | 12 | 0.01 |
| Gebj8s. | 8 | 19 | 12 | 9 | 10 | 0.3 | 0.3 | 13 | 6.5 | 20 | 0.016 |
| Gebj10s. | 10 | 22 | 14 | 11 | 13 | 0.3 | 0.6 | 13 | 9.6 | 28 | 0.031 |
| Gebj12s. | 12 | 26 | 16 | 12 | 15 | 0.3 | 0.6 | 13 | 12 | 37 | 0.055 |
| Gebj14s. | 14 | 28 | 19 | 14 | 17 | 0.3 | 0.6 | 15 | 16 | 49 | 0.078 |
| Gebj16s. | 16 | 32 | 21 | 15 | 19 | 0.3 | 0.6 | 15 | 20 | 61 | 0.095 |
| Gebj18s. | 18 | 35 | 23 | 17 | 22 | 0.3 | 0.6 | 15 | 25 | 74 | 0.14 |
| Gebj20s. | 20 | 40 | 25 | 18 | 24 | 0.3 | 0.6 | 15 | 30 | 89 | 0.18 |
| Gebj22s. | 22 | 42 | 28 | 20 | 26 | 0.3 | 0.6 | 15 | 36 | 108 | 0.21 |
| Gebj25s. | 25 | 47 | 31 | 22 | 30 | 0.6 | 0.6 | 15 | 45 | 130 | 0.35 |
| Gebj30s. | 30 | 55 | 37 | 25 | 35 | 0.6 | 0.6 | 15 | 61 | 178 | 0.56 |
-Outerring um den Innenring drückt.
-Mit Schmiernut und Löcher im Außenring.
