| Menge: | |
|---|---|
|
|

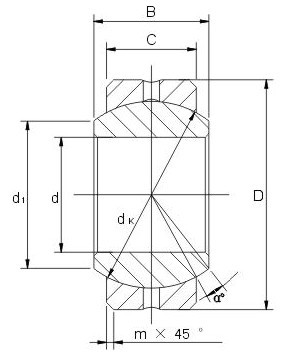

| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht | ||||||||
| d | d1. | B | C | D | Dk | m | a | dyna | kg | ||
| ≈ | C | ||||||||||
| KOM3. | 4.826 | 7.44 | 7.14 | 5.54 | 14.29 | 10.31 | 0.381 | 11 | 14.464 | 0.006 | |
| KOM4. | 6.350 | 9.25 | 8.71 | 6.35 | 16.67 | 12.70 | 0.560 | 13.5 | 22.015 | 0.010 | |
| KOM5. | 7.938 | 10.64 | 9.53 | 7.14 | 19.05 | 14.47 | 0.810 | 12 | 28.800 | 0.014 | |
| KOM6. | 9.525 | 13.11 | 10.31 | 7.92 | 20.64 | 16.66 | 0.810 | 10 | 37.361 | 0.017 | |
| KOM7. | 11.113 | 13.46 | 11.10 | 8.71 | 23.02 | 17.45 | 0.810 | 8.0 | 42.048 | 0.021 | |
| KOM8. | 12.700 | 16.26 | 12.70 | 9.91 | 25.40 | 20.65 | 0.810 | 9.5 | 58.934 | 0.029 | |
| KOM9. | 14.288 | 18.03 | 14.27 | 11.10 | 27.78 | 23.01 | 0.810 | 9.5 | 73.967 | 0.039 | |
| KOM10. | 15.875 | 19.81 | 15.88 | 12.70 | 30.16 | 25.40 | 0.810 | 8.5 | 94.658 | 0.050 | |
| KOM12. | 19.050 | 23.37 | 19.05 | 15.06 | 36.51 | 30.15 | 1.120 | 9.0 | 141.982 | 0.093 | |
| Com14. | 22.225 | 24.89 | 22.23 | 17.86 | 39.69 | 33.32 | 1.120 | 9.5 | 186.639 | 0.119 | |
| KOM16. | 25.400 | 28.40 | 25.40 | 20.24 | 44.45 | 38.10 | 1.120 | 10 | 245.534 | 0.175 | |

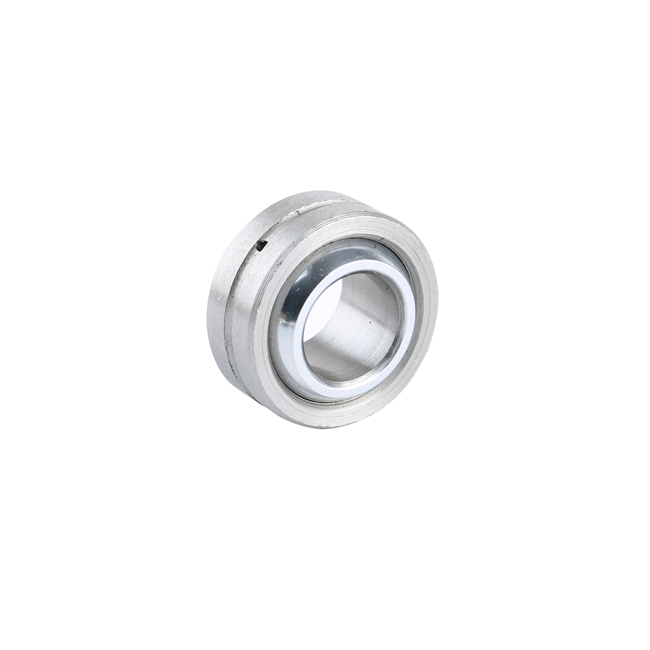

- Kugel
· 52100 Lagerstahl
· Hitzebehandelt
· Hart verchromt
· Präzisionsgrund
- Rennen
· Chrom Moly Steel
· Hitzebehandelt
-Outerring um den Innenring drückt.
-Mit Schmiernut und Löcher im Außenring.
-In Zoll-Dimensionserie.
|
|
| Lager-Nr. | Abmessungen mm. | Laden von KN. | Gewicht | ||||||||
| d | d1. | B | C | D | Dk | m | a | dyna | kg | ||
| ≈ | C | ||||||||||
| KOM3. | 4.826 | 7.44 | 7.14 | 5.54 | 14.29 | 10.31 | 0.381 | 11 | 14.464 | 0.006 | |
| KOM4. | 6.350 | 9.25 | 8.71 | 6.35 | 16.67 | 12.70 | 0.560 | 13.5 | 22.015 | 0.010 | |
| KOM5. | 7.938 | 10.64 | 9.53 | 7.14 | 19.05 | 14.47 | 0.810 | 12 | 28.800 | 0.014 | |
| KOM6. | 9.525 | 13.11 | 10.31 | 7.92 | 20.64 | 16.66 | 0.810 | 10 | 37.361 | 0.017 | |
| KOM7. | 11.113 | 13.46 | 11.10 | 8.71 | 23.02 | 17.45 | 0.810 | 8.0 | 42.048 | 0.021 | |
| KOM8. | 12.700 | 16.26 | 12.70 | 9.91 | 25.40 | 20.65 | 0.810 | 9.5 | 58.934 | 0.029 | |
| KOM9. | 14.288 | 18.03 | 14.27 | 11.10 | 27.78 | 23.01 | 0.810 | 9.5 | 73.967 | 0.039 | |
| KOM10. | 15.875 | 19.81 | 15.88 | 12.70 | 30.16 | 25.40 | 0.810 | 8.5 | 94.658 | 0.050 | |
| KOM12. | 19.050 | 23.37 | 19.05 | 15.06 | 36.51 | 30.15 | 1.120 | 9.0 | 141.982 | 0.093 | |
| Com14. | 22.225 | 24.89 | 22.23 | 17.86 | 39.69 | 33.32 | 1.120 | 9.5 | 186.639 | 0.119 | |
| KOM16. | 25.400 | 28.40 | 25.40 | 20.24 | 44.45 | 38.10 | 1.120 | 10 | 245.534 | 0.175 | |
- Kugel
· 52100 Lagerstahl
· Hitzebehandelt
· Hart verchromt
· Präzisionsgrund
- Rennen
· Chrom Moly Steel
· Hitzebehandelt
-Outerring um den Innenring drückt.
-Mit Schmiernut und Löcher im Außenring.
-In Zoll-Dimensionserie.
