Hydraulikstangen enden
Baustoffgeschäfte, Fertigungsstätte, Maschinenreparaturwerkstätten, Food & Getränk Fabrik, Bauarbeiten, Energie- und Bergbau
Ningbo, China.
Ningbo LEHONB MACHINERY Co., Ltd
| Menge: | |
|---|---|
|
|
| Teil Nr | Abmessungen mm. | Laden von KN. | Gewicht (kg | ||||||||||||||
| d | d3. | d4. | B | C1. | d2. | L7. | L8. | H2. | L4. | Dk | d1. | D | a | dyna | stat. | ||
| Mindest | ≈ | C | C0. | ||||||||||||||
| Gk10do * | 10 | 3 | 38.5 | 9 | 7 | 29 | 15 | 1.5 | 24 | 38.5 | 16 | 13.2 | 19 | 12 | 8.2 | 15.6 | 0.041 |
| Gk12 do. | 12 | 3 | 44 | 10 | 8 | 34 | 18 | 1.5 | 27 | 44 | 18 | 15 | 22 | 11 | 10.8 | 21.6 | 0.066 |
| Gk15do. | 15 | 4 | 51 | 12 | 10 | 40 | 20 | 2 | 31 | 51 | 22 | 18.4 | 26 | 8 | 17.0 | 32.0 | 0.120 |
| Gk17do. | 17 | 4 | 58 | 14 | 11 | 46 | 23 | 2 | 35 | 58 | 25 | 20.7 | 30 | 10 | 21.2 | 40.0 | 0.190 |
| Gk20do. | 20 | 4 | 64.5 | 16 | 13 | 53 | 27.5 | 2 | 38 | 64.5 | 29 | 24.2 | 35 | 9 | 30.0 | 54.0 | 0.230 |
| Gk25do. | 25 | 4 | 77 | 20 | 17 | 64 | 33 | 3 | 45 | 77 | 35.5 | 29.3 | 42 | 7 | 48.0 | 72.0 | 0.430 |
| Gk30do. | 30 | 4 | 87.5 | 22 | 19 | 73 | 37.5 | 3 | 51 | 87.5 | 40.7 | 34.2 | 47 | 6 | 62.0 | 95.0 | 0.640 |
| Gk35do. | 35 | 4 | 102 | 25 | 21 | 82 | 43 | 3 | 61 | 102 | 47 | 39.8 | 55 | 6 | 80.0 | 125.0 | 0.960 |
| Gk40do. | 40 | 4 | 115 | 28 | 23 | 92 | 48 | 4 | 69 | 115 | 53 | 45 | 62 | 7 | 100.0 | 156.0 | 1.300 |
| Gk45do. | 45 | 6 | 128 | 32 | 27 | 102 | 52 | 4 | 77 | 128 | 60 | 50.8 | 68 | 7 | 127.0 | 208.0 | 1.800 |
| Gk50do. | 50 | 6 | 144 | 35 | 30 | 112 | 59 | 4 | 88 | 144 | 66 | 55.9 | 75 | 6 | 156.0 | 250.0 | 2.500 |
| Gk60do. | 60 | 6 | 167.5 | 44 | 38 | 135 | 72.5 | 4 | 100 | 167.5 | 80 | 66.8 | 90 | 6 | 245.0 | 390.0 | 3.900 |
| Gk70do. | 70 | 6 | 195 | 49 | 42 | 160 | 86 | 5 | 115 | 195 | 92 | 77.9 | 105 | 6 | 315.0 | 510.0 | 6.600 |
| Gk80do. | 80 | 6 | 231 | 55 | 47 | 180 | 98 | 5 | 141 | 231 | 105 | 89.4 | 120 | 6 | 400.0 | 620.0 | 8.700 |

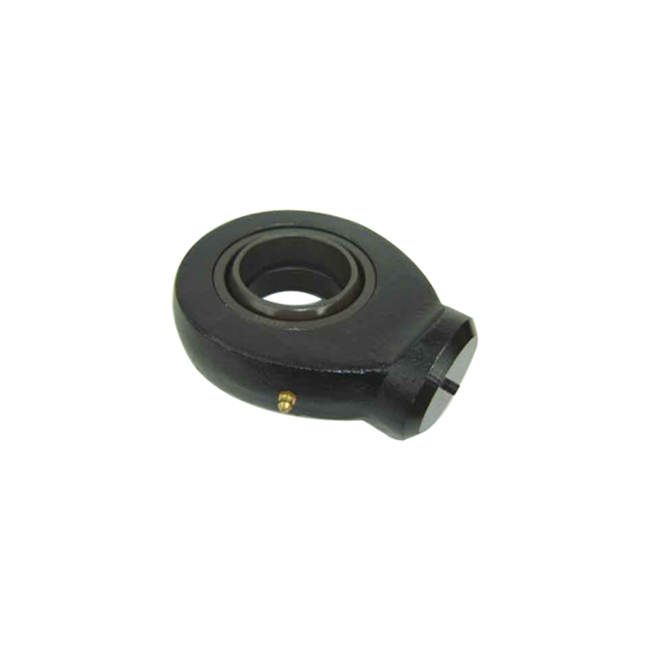

-Rod-Endgehäuse mit rechts oder linker Innengewinde.
-Es besteht aus einem radialen kugelförmigen Gleitlager GE..ES oder GE..ES 2Rs und RAD-Endgehäuse.
-Rod-Endgehäuse mit einem Schmierloch oder Schmiernippel.
|
|
| Teil Nr | Abmessungen mm. | Laden von KN. | Gewicht (kg | ||||||||||||||
| d | d3. | d4. | B | C1. | d2. | L7. | L8. | H2. | L4. | Dk | d1. | D | a | dyna | stat. | ||
| Mindest | ≈ | C | C0. | ||||||||||||||
| Gk10do * | 10 | 3 | 38.5 | 9 | 7 | 29 | 15 | 1.5 | 24 | 38.5 | 16 | 13.2 | 19 | 12 | 8.2 | 15.6 | 0.041 |
| Gk12 do. | 12 | 3 | 44 | 10 | 8 | 34 | 18 | 1.5 | 27 | 44 | 18 | 15 | 22 | 11 | 10.8 | 21.6 | 0.066 |
| Gk15do. | 15 | 4 | 51 | 12 | 10 | 40 | 20 | 2 | 31 | 51 | 22 | 18.4 | 26 | 8 | 17.0 | 32.0 | 0.120 |
| Gk17do. | 17 | 4 | 58 | 14 | 11 | 46 | 23 | 2 | 35 | 58 | 25 | 20.7 | 30 | 10 | 21.2 | 40.0 | 0.190 |
| Gk20do. | 20 | 4 | 64.5 | 16 | 13 | 53 | 27.5 | 2 | 38 | 64.5 | 29 | 24.2 | 35 | 9 | 30.0 | 54.0 | 0.230 |
| Gk25do. | 25 | 4 | 77 | 20 | 17 | 64 | 33 | 3 | 45 | 77 | 35.5 | 29.3 | 42 | 7 | 48.0 | 72.0 | 0.430 |
| Gk30do. | 30 | 4 | 87.5 | 22 | 19 | 73 | 37.5 | 3 | 51 | 87.5 | 40.7 | 34.2 | 47 | 6 | 62.0 | 95.0 | 0.640 |
| Gk35do. | 35 | 4 | 102 | 25 | 21 | 82 | 43 | 3 | 61 | 102 | 47 | 39.8 | 55 | 6 | 80.0 | 125.0 | 0.960 |
| Gk40do. | 40 | 4 | 115 | 28 | 23 | 92 | 48 | 4 | 69 | 115 | 53 | 45 | 62 | 7 | 100.0 | 156.0 | 1.300 |
| Gk45do. | 45 | 6 | 128 | 32 | 27 | 102 | 52 | 4 | 77 | 128 | 60 | 50.8 | 68 | 7 | 127.0 | 208.0 | 1.800 |
| Gk50do. | 50 | 6 | 144 | 35 | 30 | 112 | 59 | 4 | 88 | 144 | 66 | 55.9 | 75 | 6 | 156.0 | 250.0 | 2.500 |
| Gk60do. | 60 | 6 | 167.5 | 44 | 38 | 135 | 72.5 | 4 | 100 | 167.5 | 80 | 66.8 | 90 | 6 | 245.0 | 390.0 | 3.900 |
| Gk70do. | 70 | 6 | 195 | 49 | 42 | 160 | 86 | 5 | 115 | 195 | 92 | 77.9 | 105 | 6 | 315.0 | 510.0 | 6.600 |
| Gk80do. | 80 | 6 | 231 | 55 | 47 | 180 | 98 | 5 | 141 | 231 | 105 | 89.4 | 120 | 6 | 400.0 | 620.0 | 8.700 |
-Rod-Endgehäuse mit rechts oder linker Innengewinde.
-Es besteht aus einem radialen kugelförmigen Gleitlager GE..ES oder GE..ES 2Rs und RAD-Endgehäuse.
-Rod-Endgehäuse mit einem Schmierloch oder Schmiernippel.
