| Menge: | |
|---|---|
|
|

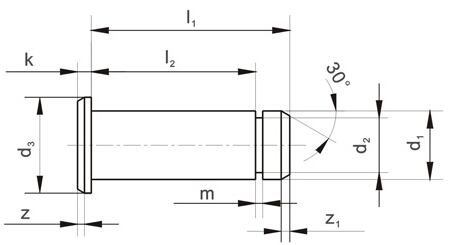

| Teil-Nr. | d1. | d3. | l1. | l2. | k | d2. | m | z | z1. | kg / 100 pflücken |
| h11. | H14. | js15. | 0.3 | JS14. | -0.2 | 0.1 | ||||
| PA 4. | 4 | 6 | 10.5 | 8.5 | 1 | 3.2 | 0.64 | 0.5 | 0.5 | 0.12 |
| PA 5. | 5 | 8 | 13 | 10.5 | 1.5 | 4 | 0.74 | 0.5 | 0.5 | 0.24 |
| PA 6. | 6 | 9 | 15.5 | 12.5 | 1.5 | 5 | 0.74 | 0.5 | 0.75 | 0.42 |
| PA 8. | 8 | 12 | 20 | 16.5 | 2 | 6 | 0.94 | 1 | 1 | 0.9 |
| PA 10. | 10 | 14 | 25 | 20.5 | 2 | 8 | 1.05 | 1 | 1 | 1.7 |
| PA 12. | 12 | 17 | 30 | 24.5 | 3 | 9 | 1.15 | 1.5 | 1.25 | 2.95 |
| PA 14. | 14 | 20 | 33 | 27.5 | 2.5 | 10 | 1.25 | 1.5 | 1.25 | 4.1 |
| PA 16. | 16 | 20 | 38.5 | 32.5 | 3.5 | 12 | 1.35 | 1.5 | 1.5 | 6.2 |
| PA 18. | 18 | 25 | 42 | 36.5 | 3.5 | 13 | 1.35 | 2 | 1.5 | 8.95 |
| PA 20. | 20 | 28 | 46 | 40.5 | 4 | 17.5 | 1.8 | 2 | 1.5 | 12.1 |
| PA 25. | 25 | 34 | 57 | 50.5 | 5.5 | 18 | 1.8 | 2 | 1.5 | 23.1 |
Material:
Niedriger Kohlenstoffstahl 1020,
Alternative, Edelstahl
Oberflächenschutz:
phosphatisiert, geölt, Zinkplatte, in weißblauem oder gelb passiviert.
|
|
| Teil-Nr. | d1. | d3. | l1. | l2. | k | d2. | m | z | z1. | kg / 100 pflücken |
| h11. | H14. | js15. | 0.3 | JS14. | -0.2 | 0.1 | ||||
| PA 4. | 4 | 6 | 10.5 | 8.5 | 1 | 3.2 | 0.64 | 0.5 | 0.5 | 0.12 |
| PA 5. | 5 | 8 | 13 | 10.5 | 1.5 | 4 | 0.74 | 0.5 | 0.5 | 0.24 |
| PA 6. | 6 | 9 | 15.5 | 12.5 | 1.5 | 5 | 0.74 | 0.5 | 0.75 | 0.42 |
| PA 8. | 8 | 12 | 20 | 16.5 | 2 | 6 | 0.94 | 1 | 1 | 0.9 |
| PA 10. | 10 | 14 | 25 | 20.5 | 2 | 8 | 1.05 | 1 | 1 | 1.7 |
| PA 12. | 12 | 17 | 30 | 24.5 | 3 | 9 | 1.15 | 1.5 | 1.25 | 2.95 |
| PA 14. | 14 | 20 | 33 | 27.5 | 2.5 | 10 | 1.25 | 1.5 | 1.25 | 4.1 |
| PA 16. | 16 | 20 | 38.5 | 32.5 | 3.5 | 12 | 1.35 | 1.5 | 1.5 | 6.2 |
| PA 18. | 18 | 25 | 42 | 36.5 | 3.5 | 13 | 1.35 | 2 | 1.5 | 8.95 |
| PA 20. | 20 | 28 | 46 | 40.5 | 4 | 17.5 | 1.8 | 2 | 1.5 | 12.1 |
| PA 25. | 25 | 34 | 57 | 50.5 | 5.5 | 18 | 1.8 | 2 | 1.5 | 23.1 |
Material:
Niedriger Kohlenstoffstahl 1020,
Alternative, Edelstahl
Oberflächenschutz:
phosphatisiert, geölt, Zinkplatte, in weißblauem oder gelb passiviert.
